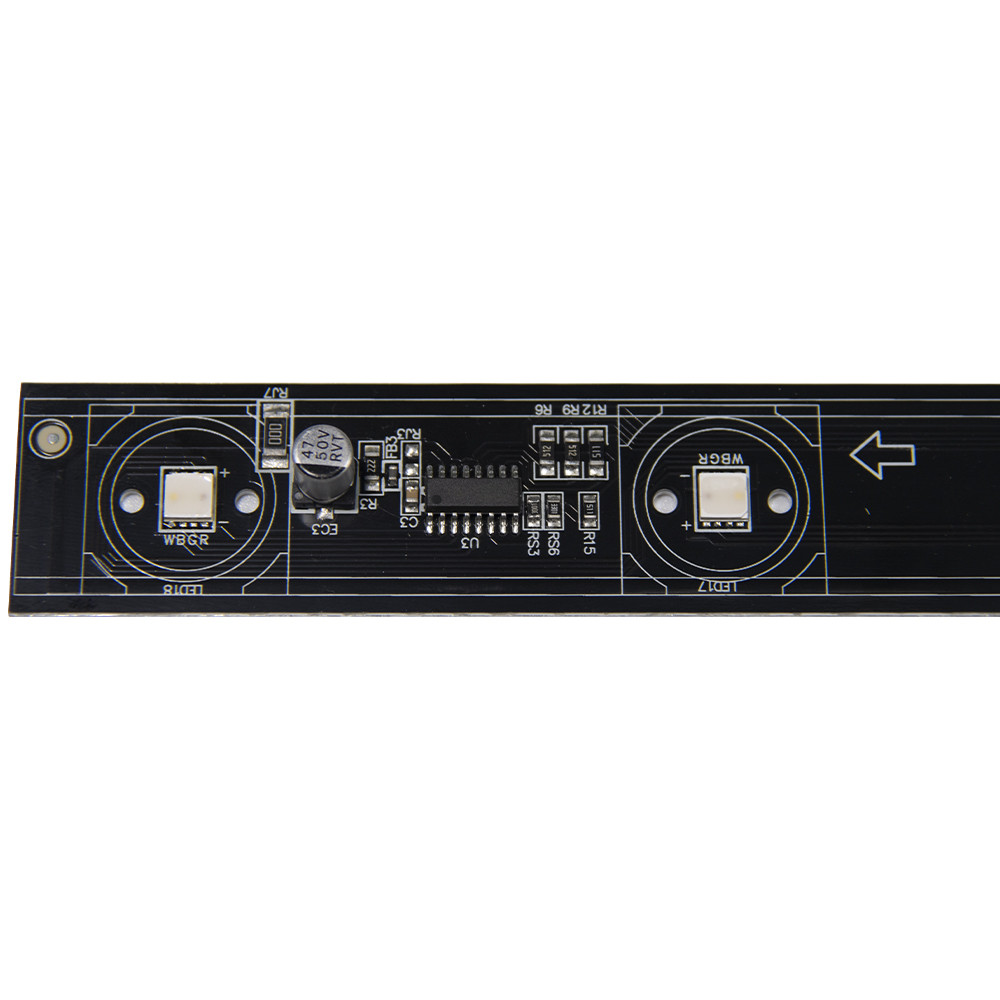

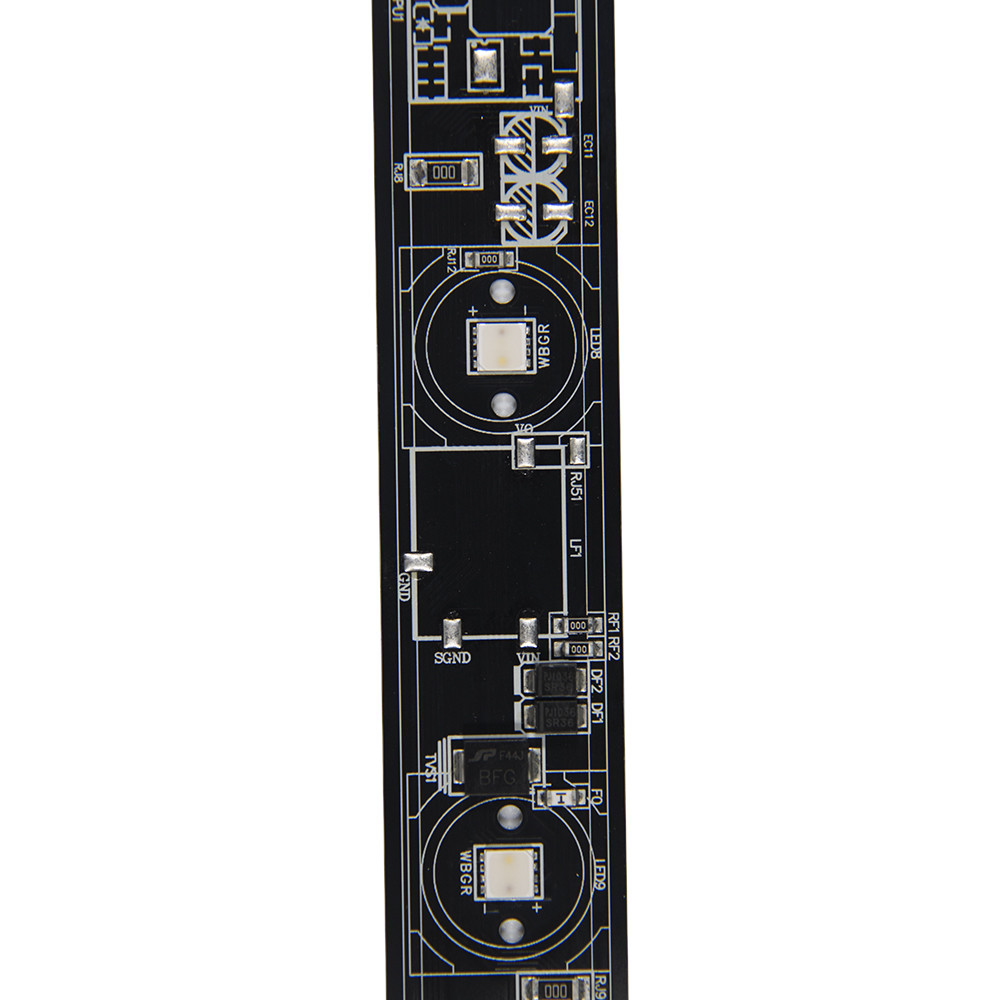

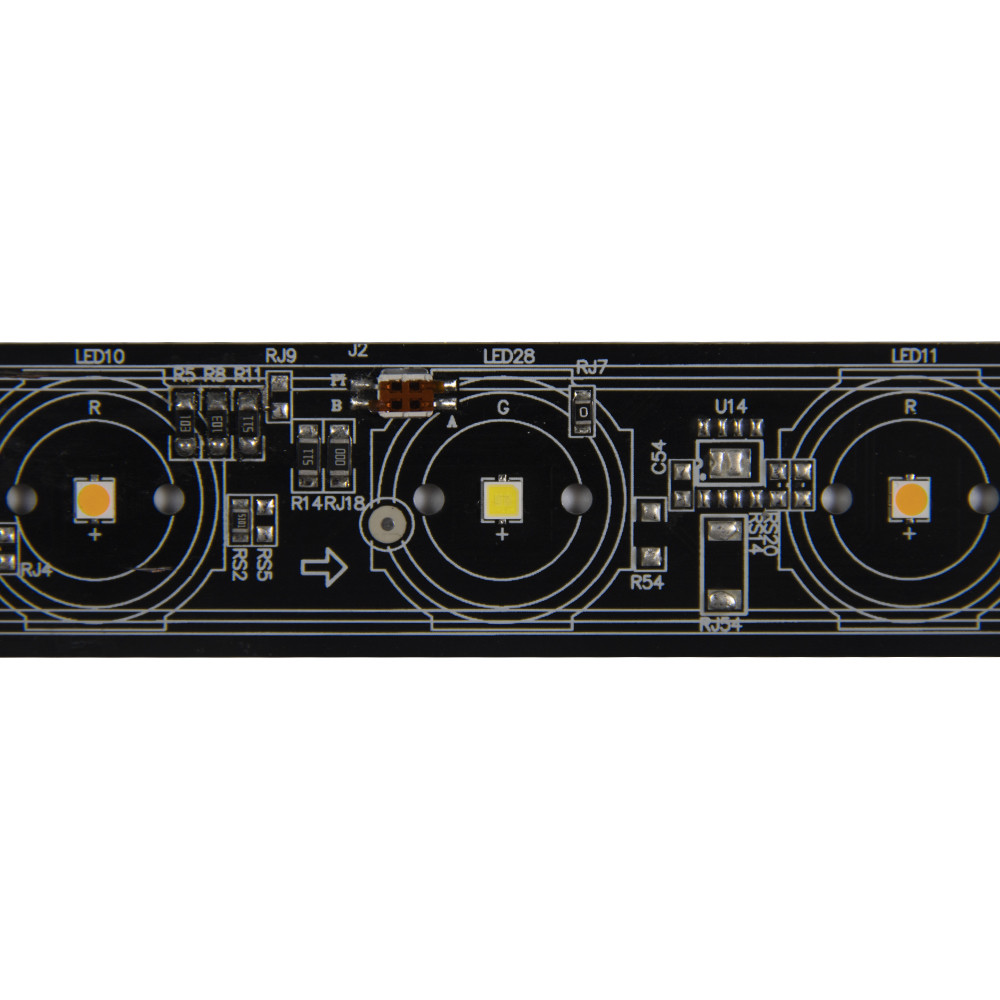

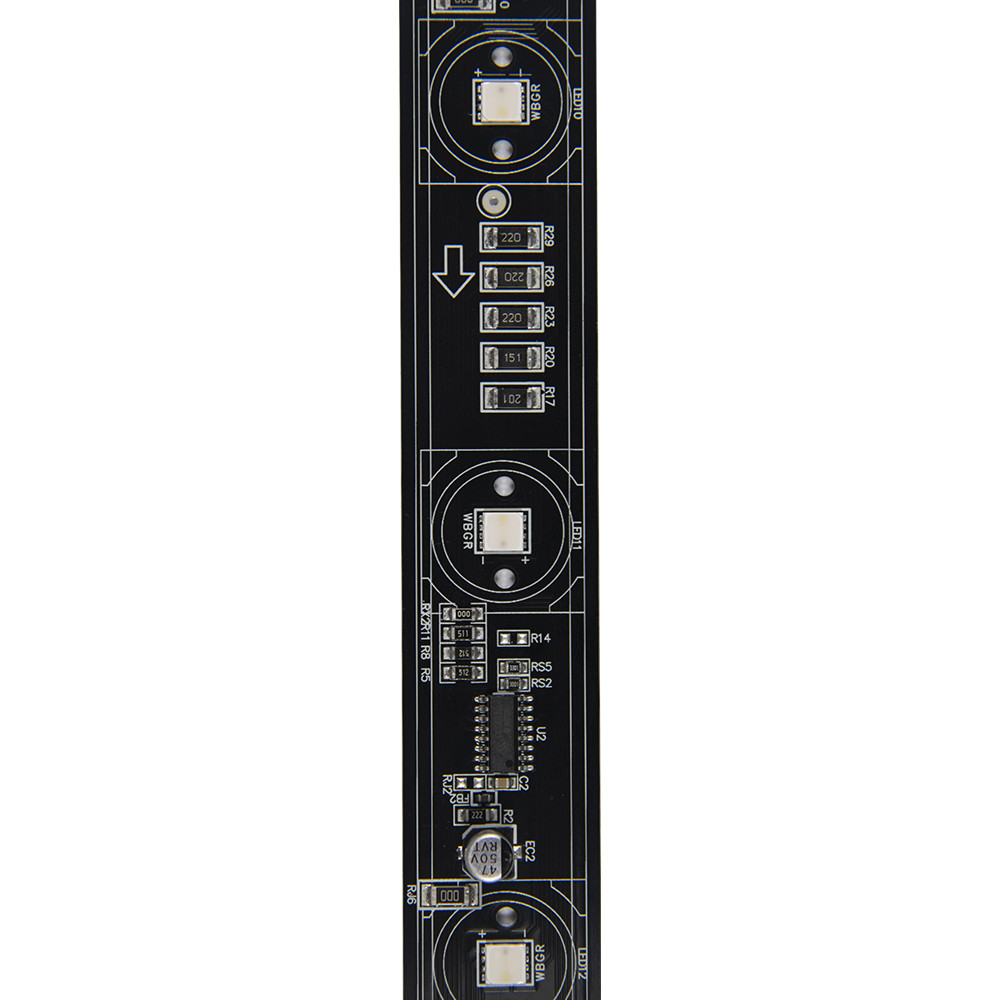

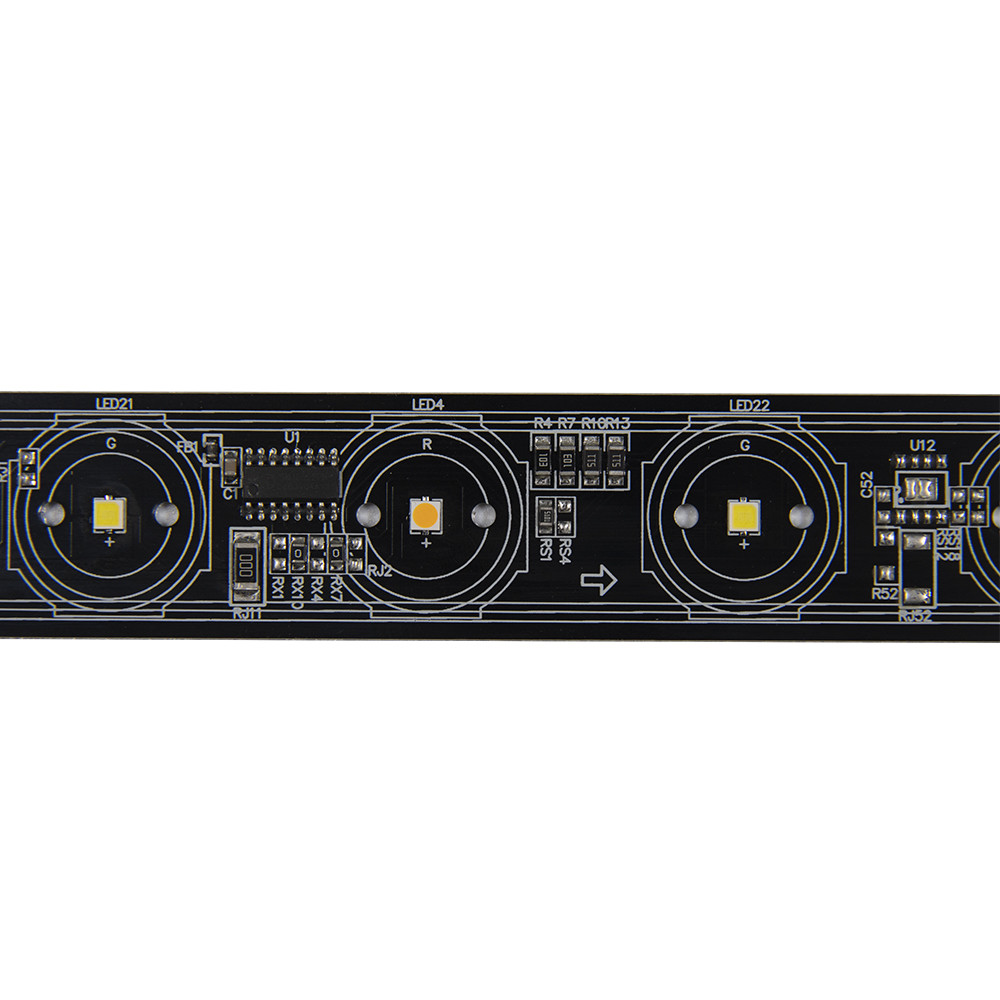

Customizable LED Printed Circuit Board HASL Lead Free Surface

2PCS

MOQ

Customizable LED Printed Circuit Board HASL Lead Free Surface

Features Gallery Product Description Request A Quote

Features

Specifications

Base Material: Aluminum Base

Copper Thickness: 1/2OZ

Peelable: 0.3-0.5mm

Profiling Punching: Routing, V-CUT, Beveling

Type: Customizable

Material: Aluminum Single Side Board

Surface Finishing: HASL Lead Free

Highlight:

Custom UL LED Printed Circuit Board

,

HASL LED Printed Circuit Board

,

Copper 2OZ LED PCB Board

Basic Infomation

Place of Origin: China

Brand Name: Yizhuo

Certification: CE,ROHS,UL

Model Number: Aluminum Pcb Board 01

Payment & Shipping Terms

Packaging Details: Vacuum Package+ Good quality carton box

Delivery Time: 10-12 work days

Payment Terms: T/T, Western Union, MoneyGram

Gallery

Customizable LED Printed Circuit Board HASL Lead Free Surface

Product Description

Customizable LED Printed Circuit Board HASL Lead Free Surface

Circuit Board Manufacturing And Their Applications In The Led Lighting Industry

The Connection between PCB, Electric Circuit Diagram, and Electronic Components

The wiring diagram and the netlist

Note

The electrical design of a PCB starts from the circuit diagram (SEF, Functional Electrical Diagram).

Whether it is made with Cadence OrCAD or with Mentor DxD, the electrical designer proceeds to study the electrical functionality to be created.

Once all the necessary components have been identified, the list of components (BOM, Bill Of Material) is drawn up for the purchase of the same.

The drafting of the electrical circuit diagram takes place at the same time as the BOM; first place the electrical symbols and then connect through the so-called "net".

Once the wiring diagram is frozen, the "netlist" is exported, a table representing the electrical connections present and the components used.

LAYER	PROTOTYPE		MASS PRODUCTION (above 20 m2)
	PROTOTYPE			Quick Turn	Standard Time
	MC PCB	48 hours		4-5 days	10-12 days
PFC 1 L	48 hours	5-6 days	12-13 days
1L	24 hours	3-4 days	8-10 days
2L	24 hours	3-4 days	8-10 days
4L	48 hours	5-6 days	8-10 days
6L	72 hours	6-7 days	10-12 days
8L	72 hours	7-8 days	12-14 days
10L	96 hours	9-10days	16-18 days

LED Printed Circuit Board

265V LED Printed Circuit Board

6.0mm LED Printed Circuit Board
